Exploratory Data Analysis

데이터셋 출처

데이터 구성

  • Pregnancies : 임신 횟수
  • Glucose : 2시간 동안의 경구 포도당 내성 검사에서 혈장 포도당 농도
  • BloodPressure : 이완기 혈압 (mm Hg)
  • SkinThickness : 삼두근 피부 주름 두께 (mm), 체지방을 추정하는데 사용되는 값
  • Insulin : 2시간 혈청 인슐린 (mu U / ml)
  • BMI : 체질량 지수 (체중kg / 키(m)^2)
  • DiabetesPedigreeFunction : 당뇨병 혈통 기능
  • Age : 나이
  • Outcome : 768개 중에 268개의 결과 클래스 변수(0 또는 1)는 1이고 나머지는 0입니다.

라이브러리 로드

In [1]:
# 데이터 분석을 위한 pandas, 수치계산을 위한 numpy
# 시각화를 위한 seaborn, matplotlib.pyplot 을 로드합니다.
import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

%matplotlib inline

데이터 로드

In [2]:
df = pd.read_csv("C:/Users/82106/Desktop/데이터 분석 프로젝트 2/당뇨병 머신러닝/데이터/archive/diabetes.csv")
df.shape
Out[2]:
(768, 9)
In [3]:
# 위에서 5개만 미리보기 합니다.
df.head()
Out[3]:
PregnanciesGlucoseBloodPressureSkinThicknessInsulinBMIDiabetesPedigreeFunctionAgeOutcome01234
6 148 72 35 0 33.6 0.627 50 1
1 85 66 29 0 26.6 0.351 31 0
8 183 64 0 0 23.3 0.672 32 1
1 89 66 23 94 28.1 0.167 21 0
0 137 40 35 168 43.1 2.288 33 1
In [4]:
# info로 데이터타입, 결측치, 메모리 사용량 등의 정보를 봅니다.
df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 768 entries, 0 to 767
Data columns (total 9 columns):
 #   Column                    Non-Null Count  Dtype
---  ------                    --------------  -----
 0   Pregnancies               768 non-null    int64
 1   Glucose                   768 non-null    int64
 2   BloodPressure             768 non-null    int64
 3   SkinThickness             768 non-null    int64
 4   Insulin                   768 non-null    int64
 5   BMI                       768 non-null    float64
 6   DiabetesPedigreeFunction  768 non-null    float64
 7   Age                       768 non-null    int64
 8   Outcome                   768 non-null    int64
dtypes: float64(2), int64(7)
memory usage: 54.1 KB
In [5]:
# 결측치를 봅니다.

df_null = df.isnull()
df_null.head()
Out[5]:
PregnanciesGlucoseBloodPressureSkinThicknessInsulinBMIDiabetesPedigreeFunctionAgeOutcome01234
False False False False False False False False False
False False False False False False False False False
False False False False False False False False False
False False False False False False False False False
False False False False False False False False False
In [6]:
df_null.sum()
Out[6]:
Pregnancies                 0
Glucose                     0
BloodPressure               0
SkinThickness               0
Insulin                     0
BMI                         0
DiabetesPedigreeFunction    0
Age                         0
Outcome                     0
dtype: int64
In [7]:
# 수치데이터에 대한 요약을 봅니다.

df.describe()
Out[7]:
PregnanciesGlucoseBloodPressureSkinThicknessInsulinBMIDiabetesPedigreeFunctionAgeOutcomecountmeanstdmin25%50%75%max
768.000000 768.000000 768.000000 768.000000 768.000000 768.000000 768.000000 768.000000 768.000000
3.845052 120.894531 69.105469 20.536458 79.799479 31.992578 0.471876 33.240885 0.348958
3.369578 31.972618 19.355807 15.952218 115.244002 7.884160 0.331329 11.760232 0.476951
0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.078000 21.000000 0.000000
1.000000 99.000000 62.000000 0.000000 0.000000 27.300000 0.243750 24.000000 0.000000
3.000000 117.000000 72.000000 23.000000 30.500000 32.000000 0.372500 29.000000 0.000000
6.000000 140.250000 80.000000 32.000000 127.250000 36.600000 0.626250 41.000000 1.000000
17.000000 199.000000 122.000000 99.000000 846.000000 67.100000 2.420000 81.000000 1.000000
In [8]:
# 가장 마지막에 있는 Outcome 은 label 값이기 때문에 제외하고
# 학습과 예측에 사용할 컬럼을 만들어 줍니다.
# feature_columns 라는 변수에 담아줍니다.

feature_columns = df.columns[:-1].tolist()
feature_columns
Out[8]:
['Pregnancies',
 'Glucose',
 'BloodPressure',
 'SkinThickness',
 'Insulin',
 'BMI',
 'DiabetesPedigreeFunction',
 'Age']

결측치 시각화

값을 요약해 보면 최솟값이 0으로 나오는 값들이 있습니다.

0이 나올 수 있는 값도 있지만 인슐린이나 혈압 등의 값은 0값이 결측치라고 볼 수 있을 것입니다.

따라서 0인 값을 결측치로 처리하고 시각화 해봅니다.

In [9]:
cols = feature_columns[1:]
cols
Out[9]:
['Glucose',
 'BloodPressure',
 'SkinThickness',
 'Insulin',
 'BMI',
 'DiabetesPedigreeFunction',
 'Age']
In [10]:
# 결측치 여부를 나타내는 데이터프레임을 만듭니다.
# 0값을 결측치라 가정하고 정답(label, target)값을 제외한 컬럼에 대해
# 결측치 여부를 구해서 df_null 이라는 데이터프레임에 담습니다.
df_null = df[cols].replace(0, np.nan)
df_null = df_null.isnull()
df_null.sum()
Out[10]:
Glucose                       5
BloodPressure                35
SkinThickness               227
Insulin                     374
BMI                          11
DiabetesPedigreeFunction      0
Age                           0
dtype: int64
In [11]:
df_null.mean() * 100
Out[11]:
Glucose                      0.651042
BloodPressure                4.557292
SkinThickness               29.557292
Insulin                     48.697917
BMI                          1.432292
DiabetesPedigreeFunction     0.000000
Age                          0.000000
dtype: float64
In [12]:
# 결측치의 갯수를 구해 막대 그래프로 시각화 합니다.
df_null.sum().plot.barh()

# 결측치를 heatmap 으로 시각화 합니다.
plt.figure(figsize=(15, 4))
sns.heatmap(df_null, cmap="Greys_r")

정답값

  • target, label 이라고 부르기도 합니다.
In [14]:
# 정답값인 Outcome 의 갯수를 봅니다.

df["Outcome"].value_counts()
Out[14]:
Outcome
0    500
1    268
Name: count, dtype: int64
In [15]:
# 정답값인 Outcome 의 비율을 봅니다.

df["Outcome"].value_counts(normalize=True)
Out[15]:
Outcome
0    0.651042
1    0.348958
Name: proportion, dtype: float64
In [16]:
# 다른 변수와 함께 봅니다.
# 임신횟수와 정답값을 비교해 봅니다.
# "Pregnancies"를 groupby 로 그룹화 해서 Outcome 에 대한 비율을 구합니다.
# 결과를 df_po라는 변수에 저장합니다.

df_po = df.groupby(["Pregnancies"])["Outcome"].agg(["mean", "count"]).reset_index()
df_po
Out[16]:
Pregnanciesmeancount012345678910111213141516
0 0.342342 111
1 0.214815 135
2 0.184466 103
3 0.360000 75
4 0.338235 68
5 0.368421 57
6 0.320000 50
7 0.555556 45
8 0.578947 38
9 0.642857 28
10 0.416667 24
11 0.636364 11
12 0.444444 9
13 0.500000 10
14 1.000000 2
15 1.000000 1
17 1.000000 1
In [17]:

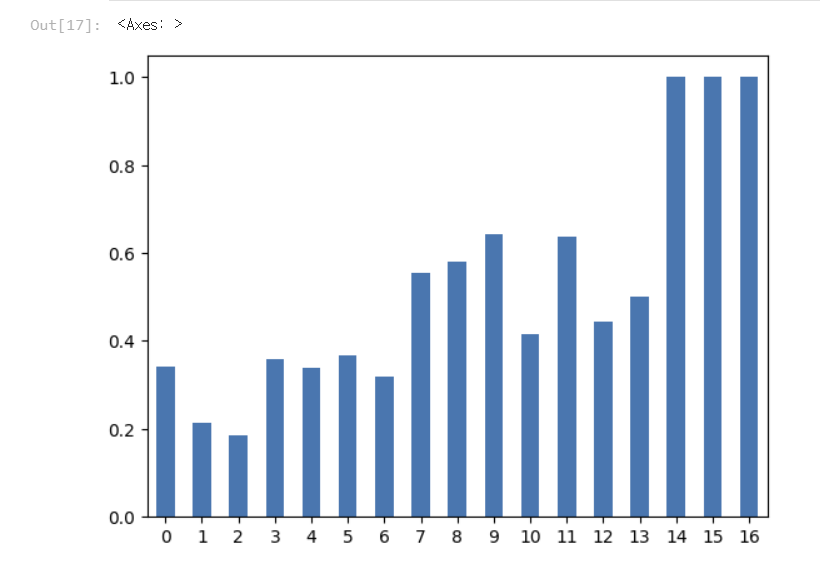

# 임신횟수에 따른 당뇨병 발병 비율
df_po["mean"].plot.bar(rot=0)

countplot

In [18]:
# 위에서 구했던 당뇨병 발병 비율을 구해봅니다.
# 당뇨병 발병 빈도수를 비교 합니다.

sns.countplot(data=df, x="Outcome")

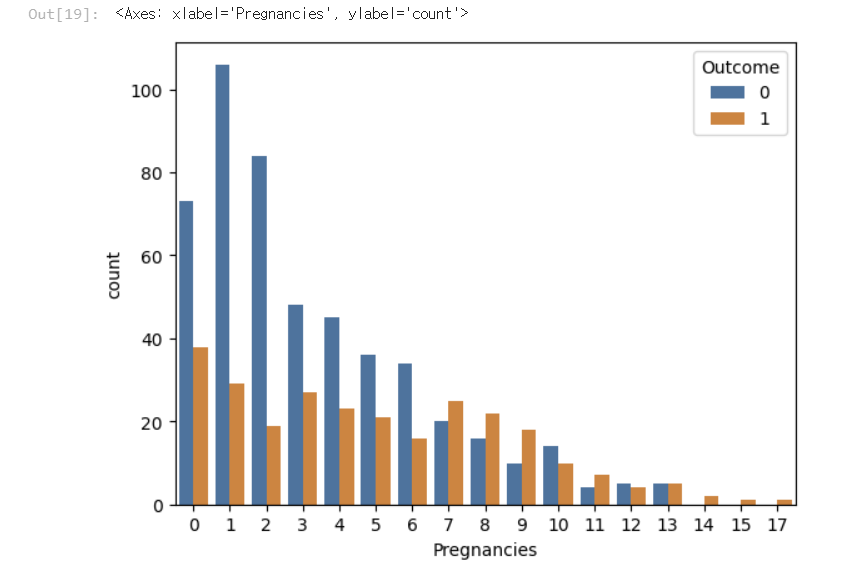

# 임신횟수에 따른 당뇨병 발병 빈도수를 비교합니다.

sns.countplot(data=df, x="Pregnancies", hue="Outcome")

# 임신횟수의 많고 적음에 따라 Pregnancies_high 변수를 만듭니다.

df["Pregnancies_high"] = df["Pregnancies"] > 6
df[["Pregnancies", "Pregnancies_high"]].head()
Out[20]:
PregnanciesPregnancies_high01234
6 False
1 False
8 True
1 False
0 False
In [21]:

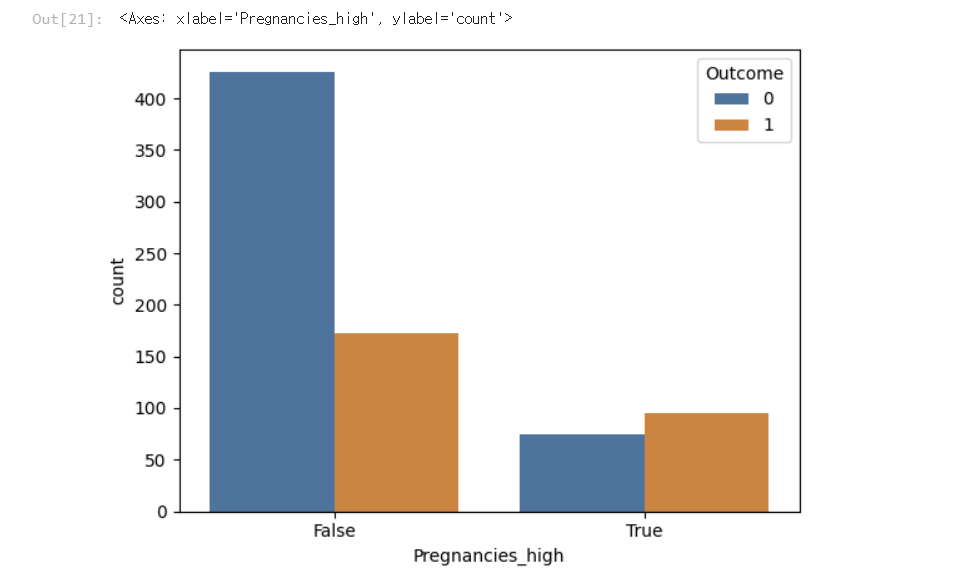

# Pregnancies_high 변수의 빈도수를 countplot 으로 그리고
# Outcome 값에 따라 다른 색상으로 표현합니다.

sns.countplot(data=df, x="Pregnancies_high", hue="Outcome")

barplot

  • 기본 설정으로 시각화 하면 y축에는 평균을 추정해서 그리게 됩니다.
In [22]:

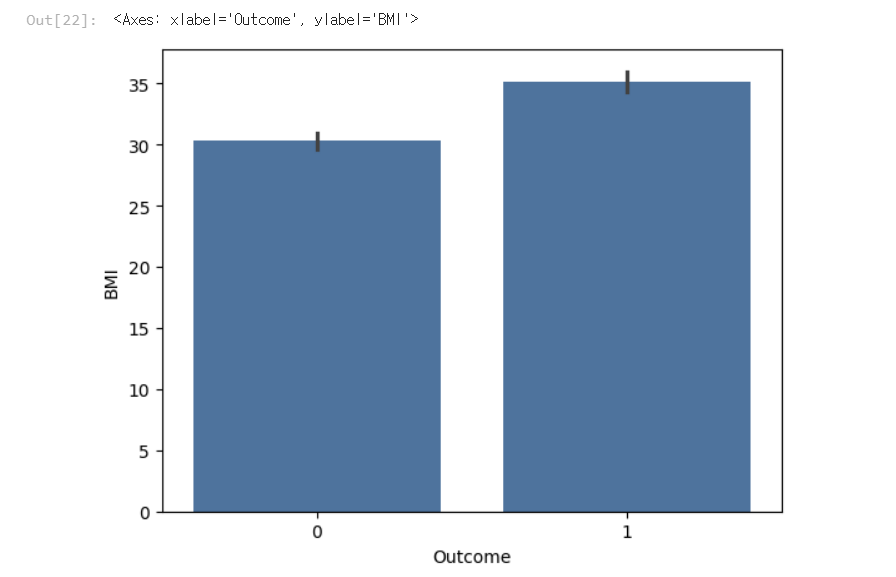

# 당뇨병 발병에 따른 BMI 수치를 비교합니다.

sns.barplot(data=df, x="Outcome", y="BMI")

# 당뇨병 발병에 따른 포도당(Glucose)수치를 비교합니다.

sns.barplot(data=df, x="Outcome", y="Glucose")

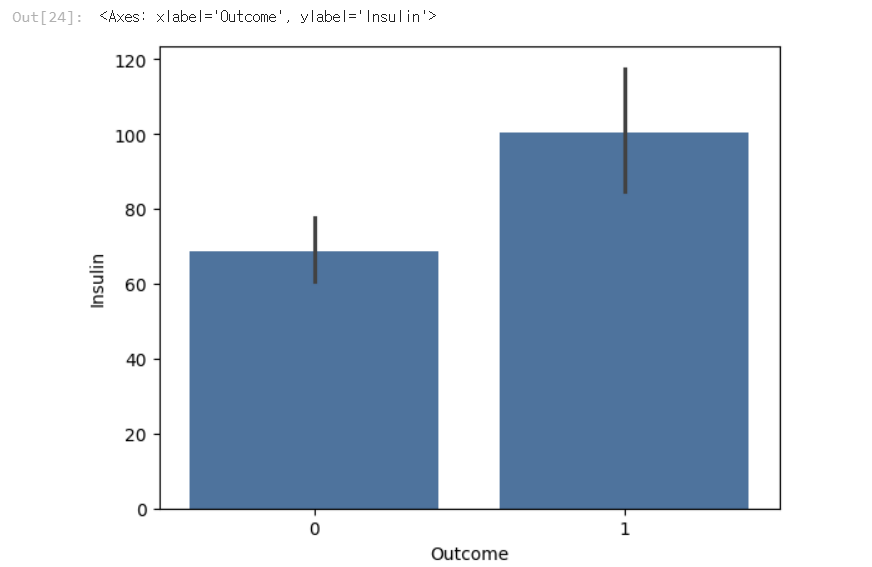

# Insulin 수치가 0 이상인 관측치에 대해서 당뇨병 발병을 비교합니다.

sns.barplot(data=df, x="Outcome", y="Insulin")

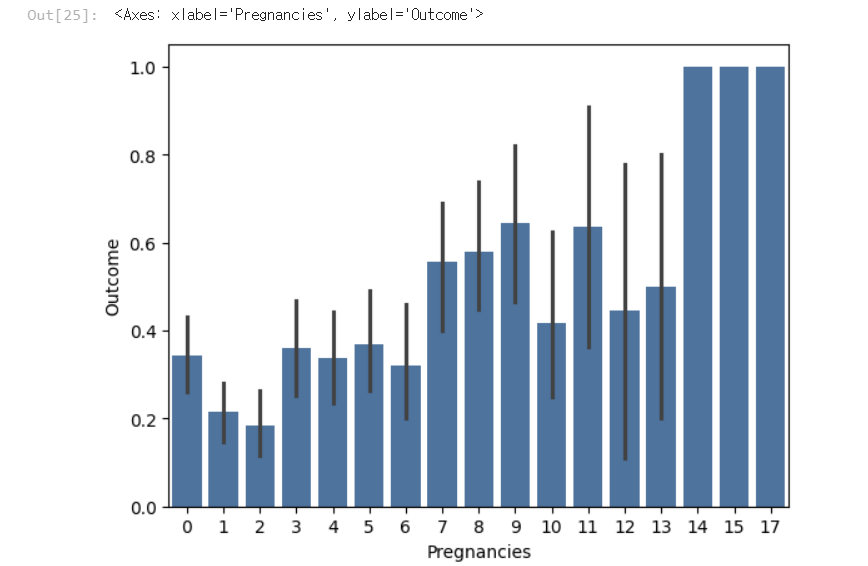

# 임신횟수에 대해서 당뇨병 발병 비율을 비교합니다.

sns.barplot(data=df, x="Pregnancies", y="Outcome")

# 임신횟수(Pregnancies)에 따른 포도당(Glucose)수치를 당뇨병 발병여부(Outcome)에 따라 시각화 합니다.

sns.barplot(data=df, x="Pregnancies", y="Glucose", hue="Outcome")

# 임신횟수(Pregnancies)에 따른 체질량지수(BMI)를 당뇨병 발병여부(Outcome)에 따라 시각화 합니다.

sns.barplot(data=df, x="Pregnancies", y="BMI", hue="Outcome")

# 임신횟수(Pregnancies)에 따른 인슐린 수치(Insulin)를 당뇨병 발병여부(Outcome)에 따라 시각화 합니다.
# 인슐린 수치에는 결측치가 많기 때문에 0보다 큰 값에 대해서만 그립니다.

sns.barplot(data=df[df["Insulin"] > 0],
            x="Pregnancies", y="Insulin", hue="Outcome")

boxplot

In [29]:
# 임신횟수(Pregnancies)에 따른 인슐린 수치(Insulin)를 당뇨병 발병여부(Outcome)에 따라 시각화 합니다.
# 인슐린 수치에는 결측치가 많기 때문에 0보다 큰 값에 대해서만 그립니다.

sns.boxplot(data=df[df["Insulin"] > 0],
            x="Pregnancies", y="Insulin", hue="Outcome")

violinplot

In [30]:

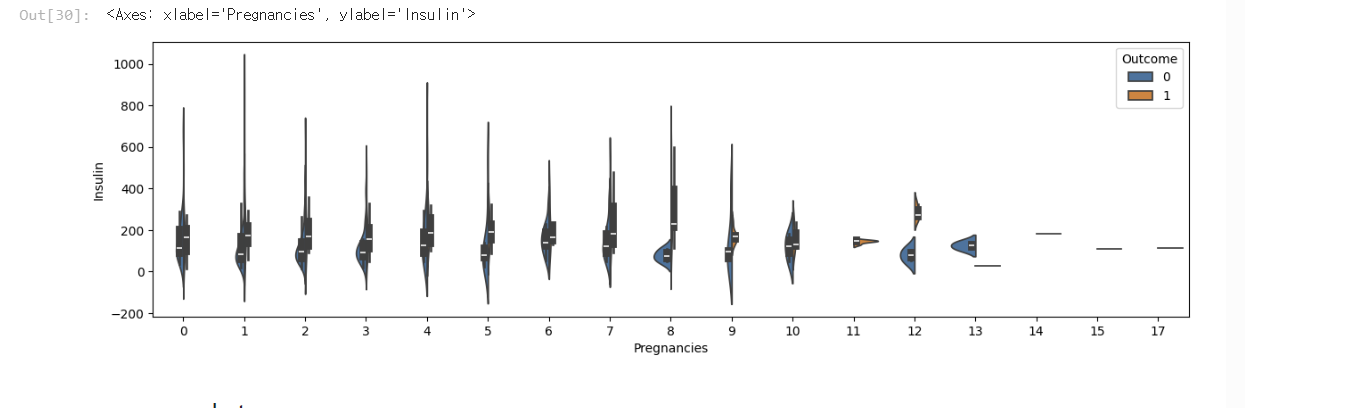

# 위의 그래프를 violinplot 으로 시각화 합니다.
plt.figure(figsize=(15, 4))
sns.violinplot(data=df[df["Insulin"] > 0],
            x="Pregnancies", y="Insulin", hue="Outcome", split=True)

swarmplot

In [31]:
# 위의 그래프를 swarmplot 으로 시각화 합니다.

plt.figure(figsize=(15, 4))
sns.swarmplot(data=df[df["Insulin"] > 0],
            x="Pregnancies", y="Insulin", hue="Outcome")
c:\Users\82106\AppData\Local\Programs\Python\Python310\lib\site-packages\seaborn\categorical.py:3399: UserWarning: 5.3% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)
c:\Users\82106\AppData\Local\Programs\Python\Python310\lib\site-packages\seaborn\categorical.py:3399: UserWarning: 26.6% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)
c:\Users\82106\AppData\Local\Programs\Python\Python310\lib\site-packages\seaborn\categorical.py:3399: UserWarning: 17.2% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)
Out[31]:
<Axes: xlabel='Pregnancies', ylabel='Insulin'>
c:\Users\82106\AppData\Local\Programs\Python\Python310\lib\site-packages\seaborn\categorical.py:3399: UserWarning: 15.6% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)

distplot

In [32]:
df_0 = df[df["Outcome"] == 0]
df_1 = df[df["Outcome"] == 1]
df_0.shape, df_1.shape
Out[32]:
((500, 10), (268, 10))
In [33]:

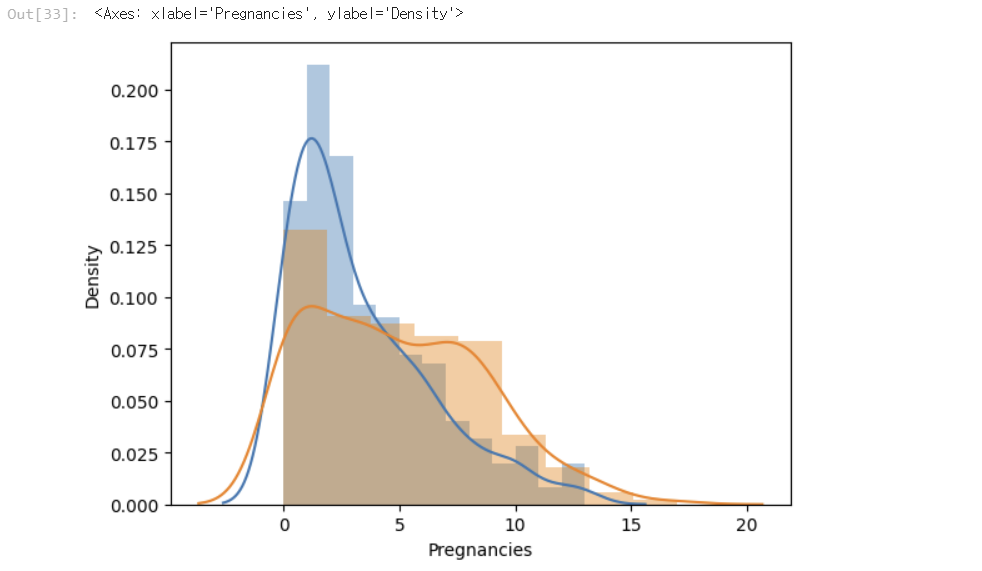

# 임신횟수에 따른 당뇨병 발병 여부를 시각화 합니다.

sns.distplot(df_0["Pregnancies"])
sns.distplot(df_1["Pregnancies"])
C:\Users\82106\AppData\Local\Temp\ipykernel_7008\906901944.py:3: UserWarning:

`distplot` is a deprecated function and will be removed in seaborn v0.14.0.

Please adapt your code to use either `displot` (a figure-level function with
similar flexibility) or `histplot` (an axes-level function for histograms).

For a guide to updating your code to use the new functions, please see
https://gist.github.com/mwaskom/de44147ed2974457ad6372750bbe5751

  sns.distplot(df_0["Pregnancies"])
C:\Users\82106\AppData\Local\Temp\ipykernel_7008\906901944.py:4: UserWarning:

`distplot` is a deprecated function and will be removed in seaborn v0.14.0.

Please adapt your code to use either `displot` (a figure-level function with
similar flexibility) or `histplot` (an axes-level function for histograms).

For a guide to updating your code to use the new functions, please see
https://gist.github.com/mwaskom/de44147ed2974457ad6372750bbe5751

  sns.distplot(df_1["Pregnancies"])

# 나이에 따른 당뇨병 발병 여부를 시각화 합니다.

sns.distplot(df_0["Age"], hist=False, rug=True, label=0)
sns.distplot(df_1["Age"], hist=False, rug=True, label=1)
C:\Users\82106\AppData\Local\Temp\ipykernel_7008\2424226668.py:3: UserWarning:

`distplot` is a deprecated function and will be removed in seaborn v0.14.0.

Please adapt your code to use either `displot` (a figure-level function with
similar flexibility) or `kdeplot` (an axes-level function for kernel density plots).

For a guide to updating your code to use the new functions, please see
https://gist.github.com/mwaskom/de44147ed2974457ad6372750bbe5751

  sns.distplot(df_0["Age"], hist=False, rug=True, label=0)
C:\Users\82106\AppData\Local\Temp\ipykernel_7008\2424226668.py:4: UserWarning:

`distplot` is a deprecated function and will be removed in seaborn v0.14.0.

Please adapt your code to use either `displot` (a figure-level function with
similar flexibility) or `kdeplot` (an axes-level function for kernel density plots).

For a guide to updating your code to use the new functions, please see
https://gist.github.com/mwaskom/de44147ed2974457ad6372750bbe5751

  sns.distplot(df_1["Age"], hist=False, rug=True, label=1)



Subplots

Pandas 를 통한 histplot 그리기

  • pandas를 사용하면 모든 변수에 대한 서브플롯을 한 번에 그려줍니다.
In [35]:
df["Pregnancies_high"] = df["Pregnancies_high"].astype(int)
h = df.hist(figsize=(15, 15), bins=20)

반복문을 통한 서브플롯 그리기

distplot

In [36]:
# 컬럼의 수 만큼 for 문을 만들어서 서브플롯으로 시각화를 합니다.
cols = df.columns[:-1].tolist()
cols
Out[36]:
['Pregnancies',
 'Glucose',
 'BloodPressure',
 'SkinThickness',
 'Insulin',
 'BMI',
 'DiabetesPedigreeFunction',
 'Age',
 'Outcome']
In [37]:
# distplot 으로 서브플롯을 그립니다.

fig, axes = plt.subplots(nrows=3, ncols=3, figsize=(15, 15))

for i, col_name in enumerate(cols):
    row = i // 3
    col = i % 3
    sns.distplot(df[col_name], ax=axes[row][col])

df_0
Out[38]:
PregnanciesGlucoseBloodPressureSkinThicknessInsulinBMIDiabetesPedigreeFunctionAgeOutcomePregnancies_high135710...762763764765767
1 85 66 29 0 26.6 0.351 31 0 False
1 89 66 23 94 28.1 0.167 21 0 False
5 116 74 0 0 25.6 0.201 30 0 False
10 115 0 0 0 35.3 0.134 29 0 True
4 110 92 0 0 37.6 0.191 30 0 False
... ... ... ... ... ... ... ... ... ...
9 89 62 0 0 22.5 0.142 33 0 True
10 101 76 48 180 32.9 0.171 63 0 True
2 122 70 27 0 36.8 0.340 27 0 False
5 121 72 23 112 26.2 0.245 30 0 False
1 93 70 31 0 30.4 0.315 23 0 False

500 rows × 10 columns

In [39]:
# 모든 변수에 대한 distplot을 그려 봅니다.

fig, axes = plt.subplots(nrows=4, ncols=2, figsize=(15, 15))

for i, col_name in enumerate(cols[:-1]):
    row = i // 2
    col = i % 2
    sns.distplot(df_0[col_name], ax=axes[row][col])
    sns.distplot(df_1[col_name], ax=axes[row][col])

violinplot

In [40]:

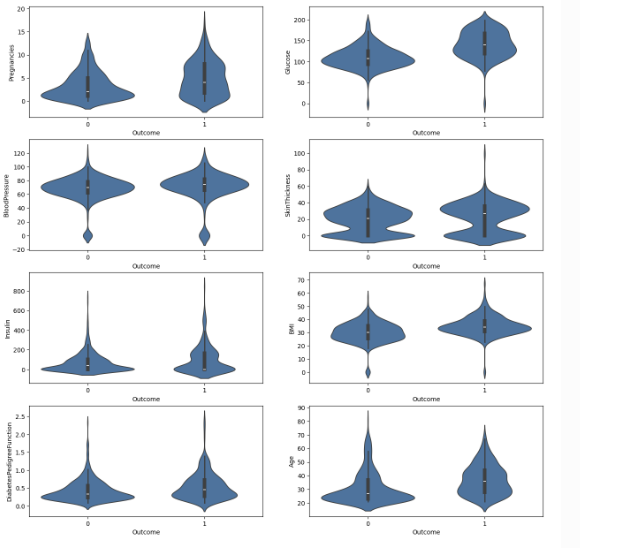

# violinplot 으로 서브플롯을 그려봅니다.


fig, axes = plt.subplots(nrows=4, ncols=2, figsize=(15, 15))

for i, col_name in enumerate(cols[:-1]):
    row = i // 2
    col = i % 2
    sns.violinplot(data=df, x="Outcome", y=col_name, ax=axes[row][col])

lmplot

  • 상관계수가 높은 두 변수에 대해 시각화 합니다.
In [41]:

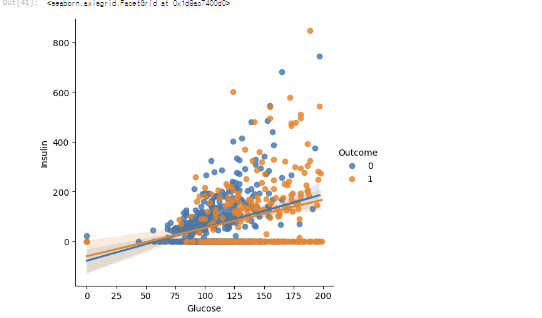

# Glucose 와 Insulin 을 Outcome 으로 구분해 봅니다.

sns.lmplot(data=df, x="Glucose", y="Insulin", hue="Outcome")

# Insulin 수치가 0 이상인 데이터로만 그려봅니다.

sns.lmplot(data=df[df["Insulin"] > 0], x="Glucose", y="Insulin", hue="Outcome")

pairplot

In [43]:
# PairGrid 를 통해 모든 변수에 대해 Outcome 에 따른 scatterplot을 그려봅니다.

g = sns.PairGrid(df, hue="Outcome")
g.map(plt.scatter)

In [44]:
df_matrix = df.iloc[:, :-2].replace(0, np.nan)
df_matrix["Outcome"] = df["Outcome"]
df_matrix.head()
Out[44]:
PregnanciesGlucoseBloodPressureSkinThicknessInsulinBMIDiabetesPedigreeFunctionAgeOutcome01234
6.0 148.0 72.0 35.0 NaN 33.6 0.627 50 1
1.0 85.0 66.0 29.0 NaN 26.6 0.351 31 0
8.0 183.0 64.0 NaN NaN 23.3 0.672 32 1
1.0 89.0 66.0 23.0 94.0 28.1 0.167 21 0
NaN 137.0 40.0 35.0 168.0 43.1 2.288 33 1
In [45]:
# 정답 값인 Outcome을 제외 하고 feature 로 사용할 컬럼들에 대해 0을 결측치로 만들어 줍니다.
# 상관계수를 구합니다.

df_corr = df_matrix.corr()
df_corr.style.background_gradient()
Out[45]:
 PregnanciesGlucoseBloodPressureSkinThicknessInsulinBMIDiabetesPedigreeFunctionAgeOutcomePregnanciesGlucoseBloodPressureSkinThicknessInsulinBMIDiabetesPedigreeFunctionAgeOutcome
1.000000 0.166329 0.285013 0.167298 0.104081 0.128207 -0.006459 0.550525 0.268218
0.166329 1.000000 0.223192 0.228043 0.581186 0.232771 0.137246 0.267136 0.494650
0.285013 0.223192 1.000000 0.226839 0.098272 0.289230 -0.002805 0.330107 0.170589
0.167298 0.228043 0.226839 1.000000 0.184888 0.648214 0.115016 0.166816 0.259491
0.104081 0.581186 0.098272 0.184888 1.000000 0.228050 0.130395 0.220261 0.303454
0.128207 0.232771 0.289230 0.648214 0.228050 1.000000 0.155382 0.025841 0.313680
-0.006459 0.137246 -0.002805 0.115016 0.130395 0.155382 1.000000 0.033561 0.173844
0.550525 0.267136 0.330107 0.166816 0.220261 0.025841 0.033561 1.000000 0.238356
0.268218 0.494650 0.170589 0.259491 0.303454 0.313680 0.173844 0.238356 1.000000
In [46]:

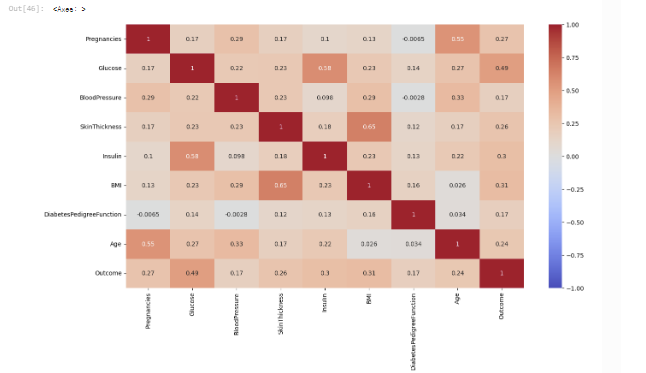

# 위에서 구한 상관계수를 heatmap으로 시각화 합니다.
plt.figure(figsize=(15, 8))
sns.heatmap(df_corr, annot=True, vmax=1, vmin=-1, cmap="coolwarm")

#  Outcome 수치에 대한 상관계수만 모아서 봅니다.

df_corr["Outcome"]
Out[47]:
Pregnancies                 0.268218
Glucose                     0.494650
BloodPressure               0.170589
SkinThickness               0.259491
Insulin                     0.303454
BMI                         0.313680
DiabetesPedigreeFunction    0.173844
Age                         0.238356
Outcome                     1.000000
Name: Outcome, dtype: float64

상관계수가 높은 변수끼리 보기

In [48]:
#  Outcome 수치에 대한 상관계수만 모아서 봅니다.

df_corr["Outcome"]
Out[47]:
Pregnancies                 0.268218
Glucose                     0.494650
BloodPressure               0.170589
SkinThickness               0.259491
Insulin                     0.303454
BMI                         0.313680
DiabetesPedigreeFunction    0.173844
Age                         0.238356
Outcome                     1.000000
Name: Outcome, dtype: float64

상관계수가 높은 변수끼리 보기

In [48]:

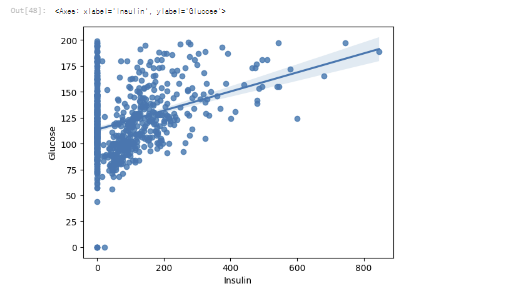

# Insulin 과 Glucose 로 regplot 그리기
sns.regplot(data=df, x="Insulin", y="Glucose")
# Insulin 과 Glucose 로 regplot 그리기 sns.regplot(data=df, x="Insulin", y="Glucose")

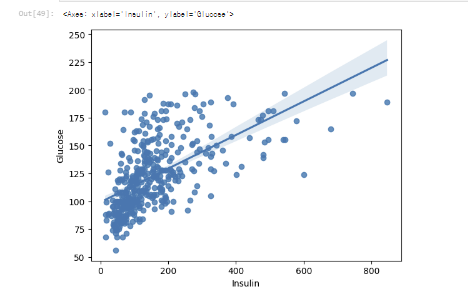

# df_0 으로 결측치 처리한 데이터프레임으로
# Insulin 과 Glucose 로 regplot 그리기

sns.regplot(data=df_matrix, x="Insulin", y="Glucose")

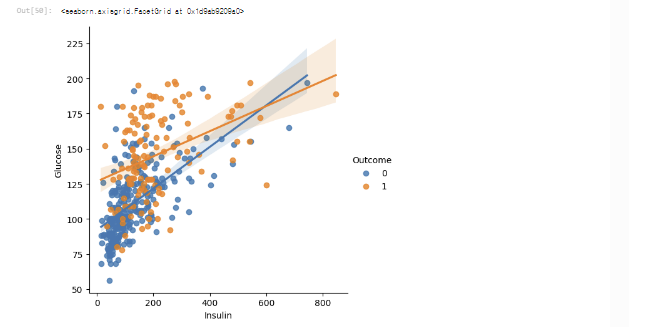

sns.lmplot(data=df_matrix, x="Insulin", y="Glucose", hue="Outcome")

# Age 와 Pregnancies 로 regplot 그리기

sns.regplot(data=df, x="Age", y="Pregnancies")

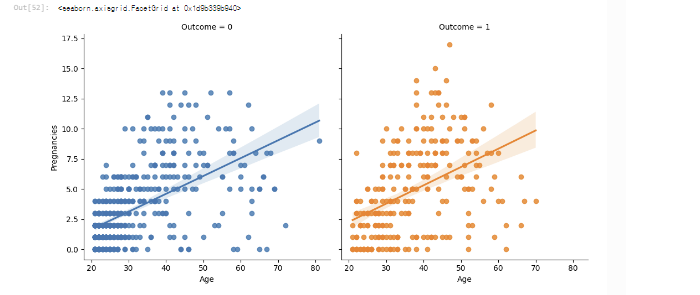

# Age 와 Pregnancies 로 lmplot 을 그리고 Outcome 에 따라 다른 색상으로 표현하기

sns.lmplot(data=df, x="Age", y="Pregnancies", hue="Outcome", col="Outcome")
